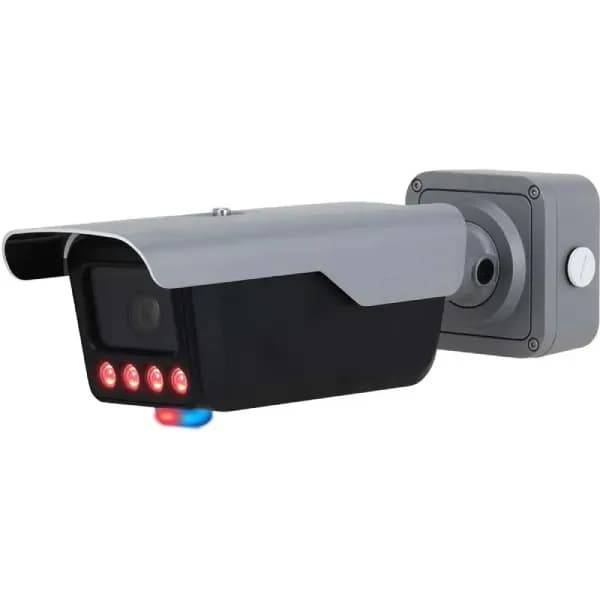

Dahua ITC413-PW4D-Z3 4MP Dual License Plate Recognition Camera LPR

Capture license plate information from moving vehicles day or night with the Dahua TC413-PW4D-Z3 4MP Outdoor Network License Plate Recognition LPR Box Camera. This unit recognizes and captures license plates of vehicles traveling at up to 75 mph. It features a 1/1.8″ progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Four LEDs (IR and warm LEDs) provide up to 65′ of illumination for automatic number-plate recognition (ANPR) and up to 197′ of illumination for video monitoring in low-light conditions. The camera’s 8-32mm motorized varifocal lens delivers a 39.9 to 15.1° horizontal field of view.

Two-way audio is possible thanks to a built-in speaker and microphone, along with an RCA audio output. Additionally, the camera features active alarm functionality to respond to triggered alarms with configurable automatic responses that include red and blue lights, a siren, and voice prompts via broadcasting a built-in message. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. An onboard memory card slot accepts microSD cards up to 256GB (available separately).



• This Dahua LPR camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance network video recorders. It is housed in an IP67- and IK10-rated enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
• IVS (Intelligent Video System) analytic algorithms for tampering, memory card error, network error, unauthorized access, IP address conflict, and intrusion
• Loitering detection
• Starlight+ technology for low-light applications
• IR cut filter enables day and night functionality
• Auto and manual illuminator on/off control
• Active alarm with red/blue lights and siren or voice prompt
• Supports signal, data, and communication interfaces and connection to external devices
• CBR and VBR
• Image settings include: brightness, contrast, saturation, gamma, sharpness, gain, and white balance
• Additional features include: image tampering prevention, digital detail enhancement, OSD overlay, JPEG image encoding format, auto/manual gain control, 3D-DNR, region of interest for up to 3 areas, SSA, backlight/highlight compensation, 140 dB WDR, >56 dB, white balance, and reset button
• Compatible with Chrome 92 or later
• LPR Functionality
• Captures and recognizes license plates of vehicles traveling at up to 75 mph
• Automatic number-plate recognition (ANPR) illumination distance up to 65.6′
• Video monitoring illumination distance up to 197′
• 25 to 65.62′ capture distance
• 69 to 26.25′ detection width
• 110,000 list capacity (allow and block list)
• 10,000 maximum number of vehicles passed
• 10 maximum number of connections





Sensor	4 MP 1/1.8″ CMOS
Focal Length	8 to 32mm
Lens Field of View	Horizontal: 39.9 to 15.1° Vertical: 21.8 to 8.5° Diagonal: 46.6 to 17.4°
Built-In Mic	Yes
Power Source	DC, PoE+ 802.3at (30 W)
Environmental Protection	Advertised as Dust Resistant/Outdoor Use/ Water Resistant *Manufacturer Testing: IP67
Illumination	4x 730 nm IR LED, LED Spotlight up to 196.9′ / 60 m



Camera

Sensor	4 MP 1/1.8″ CMOS
Focal Length	8 to 32mm
Maximum Aperture	f/1.6
Zoom	Optical: 4x
Lens Field of View	Horizontal: 39.9 to 15.1° Vertical: 21.8 to 8.5° Diagonal: 46.6 to 17.4°
IR Cut Filter	Mechanical
Day/Night	Yes
Minimum Illumination	Color: 0.001 Lux B&W: 0 Lux
Shutter Speed	1/100000 to 1/25 Seconds
DORI Coverage	With 8 to 32mm Lens: Detect: 524.93 Up to 1334.97′ /160.00 Up to 406.90 m Observe: 209.97 Up to 534.12′ / 64.00Up to 162.80 m Recognize: 104.99 Up to 267.06′ / 32.00Up to 81.40 m Identify: 52.49 Up to 133.53′ / 16.00Up to 40.70 m
Mobile App Compatible	No



Video

Streaming Resolution	2688 x 1520 at 30 fps (39.2 Mb/s MJPEG)
Supported Video Compression	H.264, H.265, MJPEG
Multi-View Streaming	Yes, 2 Streams
Automatic Gain Control	Yes



Audio

1- or 2-Way Audio	Two-Way
Built-In Mic	Yes
Built-In Speaker	Yes
Audio I/O	Output: 1 x RCA



Networking

Security	HTTPS, IEEE 802.1X, MAC Address Filtering, Password Protection
Supported Protocols	ARP, DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, NTP, PPPoE, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP



System Integration

Application Programming Interface (API)	ONVIF Profiles G, S & T, CGI, ITSAPI, P2P API, SDK
Analytics	Tampering, Memory Card Error, Network Error, Unauthorized Access, IP Address Conflict, Intrusion, Loitering Detection



Sensors & Alarms

Event Trigger	Yes
Event Action	Recording, Notification, Alarm
Data Streaming	Yes
Alarm I/O	2 / 2



Hardware

Memory	1 GB RAM / 4000 MB Flash
Media/Memory Card Slot	Single Slot: microSD 256GB Max
Internal Storage	No



Power

Power Source	DC, PoE+ 802.3at (30 W)
Power Consumption	17 W



Environmental

Operating Temperature	-22 to 149°F / -30 to 65°C
Storage Temperature	-40 to 158°F / -40 to 70°C
Operating Humidity	10 to 90%
Environmental Protection	Advertised as dust-resistant *Manufacturer Testing: IP67
IK Rating	IK10



General

Inputs/Outputs	1 x RJ45 1 x Power 2 x Serial 9-Pin (RS-485)
Certifications	EN 55024, FCC (Part 15 Class B)
Material of Construction	Aluminum, Plastic
Dimensions	H: 5.0 x W: 4.8 x L: 15.6″ / H: 127.8 x W: 120.8 x L: 396.0 mm
Weight	5.1 lb / 2.3 kg

Disclaimer:

Dahua is the largest OEM manufacturer in the world. Most of Dahua products sold in the US are the non-branded OEM versions. The non-branded product is the exact same item, but the Dahua logo is removed, and they use a different OEM part # on the sticker. OEM Part Number # IP9744LPR-Z-PV-0832

We are able to get non-branded versions at lower costs and therefore offer our customers lower prices. The product that you order is manufactured by Dahua and carries their 3 year warranty.
